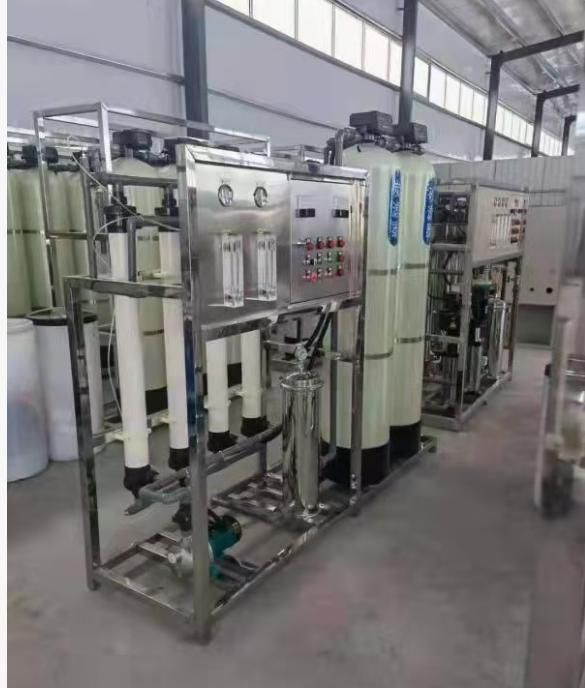

Ultrafiltration systems for polishing, solids removal and pre-RO protection, from 1 to 10 m³/h, available as integrated one-piece units or split skid systems with pretreatment vessels.
| Flow (m³/h) | Main unit L×W×H (mm) | Pretreatment tank (mm) | Type | Feed pump | Backwash pump |
|---|---|---|---|---|---|
| 1 | 1600×700×1800 | 300×1400 | Integrated | JET550 | JET320 |
| 2 | 1600×700×1800 | 350×1650 | Integrated | JET550 | JET320 |
| 3 | 1100×900×1800 | 400×1650 | Split | 4-40 | 4-40 |
| 4 | 1100×900×1800 | 500×1650 | Split | 4-40 | 4-40 |
| 6 | 1200×900×1800 | 600×1900 | Split | 8-40 | 8-40 |
| 8 | 1500×900×2000 | 900×2300 | Split | 12-40 | 12-40 |
| 10 | 1800×900×2000 | 900×2300 | Split | 12-40 | 12-40 |
Need this equipment sized for your project?
Send us your flow rate, influent and target effluent parameters and our engineers will recommend the right configuration.
Contact Our Engineering TeamUltrafiltration (UF) Systems — Polishing and Pre-RO
Ultrafiltration removes suspended solids, colloids and microorganisms, protecting downstream processes and improving water quality. Systems are available from 1 to 10 m³/h in integrated or split configurations.
What does ultrafiltration remove?
UF membranes remove suspended solids, colloids, bacteria and large organic molecules, making it an excellent pre-treatment for reverse osmosis or a final polishing step.
What configurations are available?
Smaller systems (1–2 m³/h) are integrated one-piece units; larger systems (3–10 m³/h) are split skids with separate pretreatment vessels.
What is included?
Each system includes the feed pump, backwash pump and pretreatment vessel matched to the flow rate.
Ultrafiltration (UF) System Selection Notes
Application: The UF system is used for membrane polishing, suspended solids removal, bacteria reduction, reuse pretreatment and improving effluent clarity after conventional wastewater treatment.
Key sizing data: Confirm feed turbidity, SDI, SS, oil, COD, flow rate, recovery target, cleaning plan, pretreatment condition and whether UF is for discharge polishing or reuse.
System context: This product can be used as one part of a complete industrial wastewater treatment equipment and waste water treatment systems package. For comparison, see Integrated Water Purifier.
Request a quotation: Send wastewater source, daily flow, peak flow, COD, BOD, SS, oil and grease, ammonia nitrogen, pH, discharge standard and site country so our engineers can recommend a suitable configuration.
