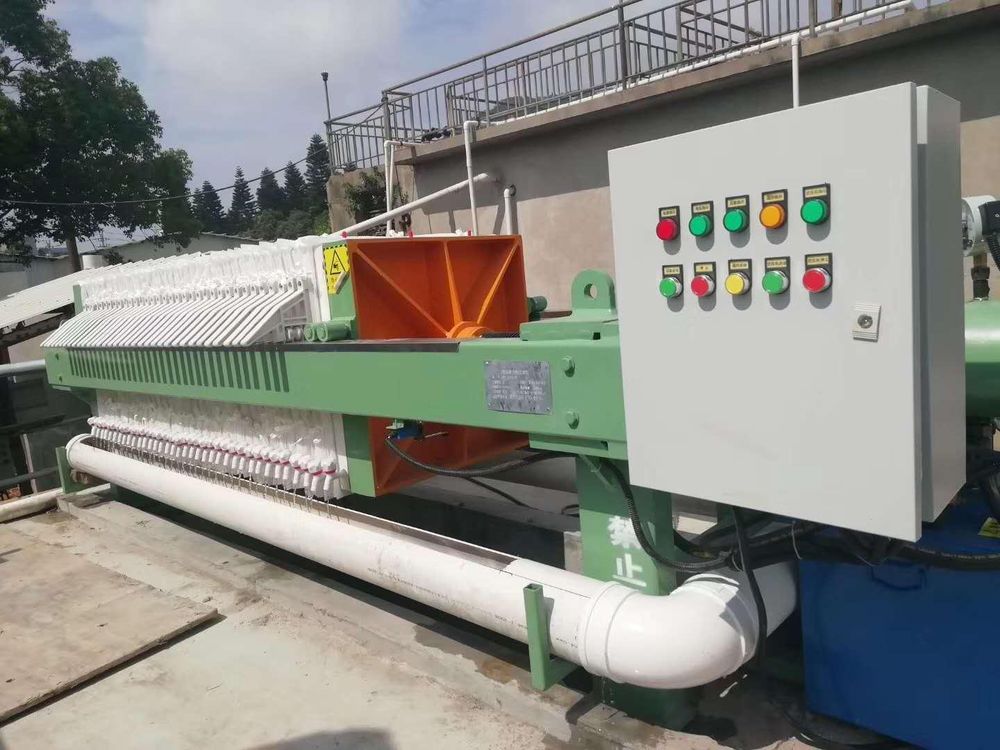

Plate-and-Frame Filter Press
Plate-and-frame filter presses for clarification and dewatering of liquids with low to medium solids content, from 3 to 100 m² filtration area with manual, hydraulic or automatic plate-shifting control.
| Model | Filtration area (m²) | Control mode | Standard pump |
|---|---|---|---|
| XA1/450 | 3 | Manual / Hydraulic auto-hold | Diaphragm pump 40 |
| XA5/450 | 5 | Manual / Hydraulic auto-hold | Diaphragm pump 40 |
| XA10/630 | 10 | Manual / Hydraulic auto-hold | Screw pump G30 |
| X(B)15/630 | 15 | Manual / Hydraulic auto-hold | Screw pump G30 |
| X(B)20/630 | 20 | Electric-mechanical / Hydraulic | Screw pump G35 |
| X(B)25/630 | 25 | Electric-mechanical / Hydraulic | Screw pump G35 |
| X(B)30/630 | 30 | Electric-mechanical / Hydraulic | Screw pump G35 |
| X(B)40/630 | 40 | Electric-mechanical / Hydraulic | Screw pump G40 |
| X(B)50/870 | 50 | Hydraulic auto-hold | Screw pump G40 |
| X(B)100/1000 | 100 | Automatic plate shifting | Slurry pump |
Need this equipment sized for your project?
Send us your flow rate, influent and target effluent parameters and our engineers will recommend the right configuration.
Contact Our Engineering TeamPlate-and-Frame Filter Presses — Clarification and Dewatering
Plate-and-frame filter presses separate solids from liquids with low to medium solids content, for clarification, polishing and sludge dewatering. Filtration areas range from 3 to 100 m².
When should a plate-and-frame filter press be used?
Use it for clarification and dewatering of liquids with up to about 50% solids content and relatively low viscosity, where tight solid-liquid separation is required.
What control modes are available?
Manual, hydraulic auto-hold, electric-mechanical and automatic plate-shifting versions are available depending on model and filtration area.
What pump is supplied?
Matching diaphragm, screw or slurry pumps are configured with each model, from diaphragm pump 40 on small units to a slurry pump on the 100 m² automatic unit.
