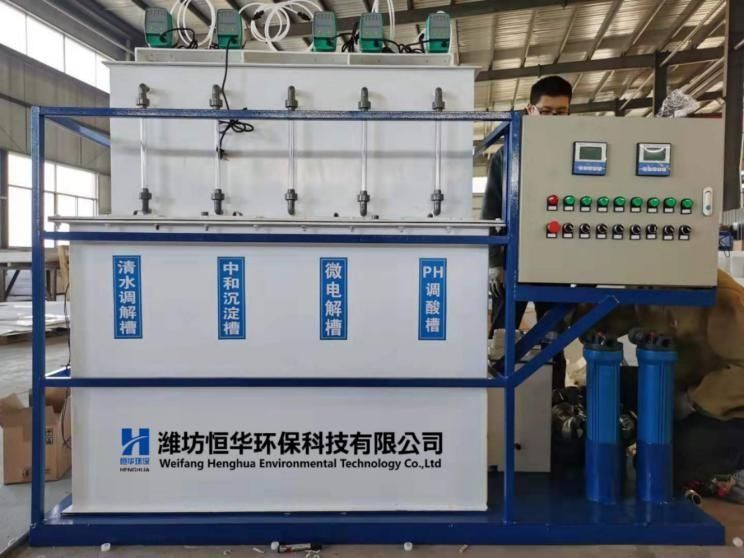

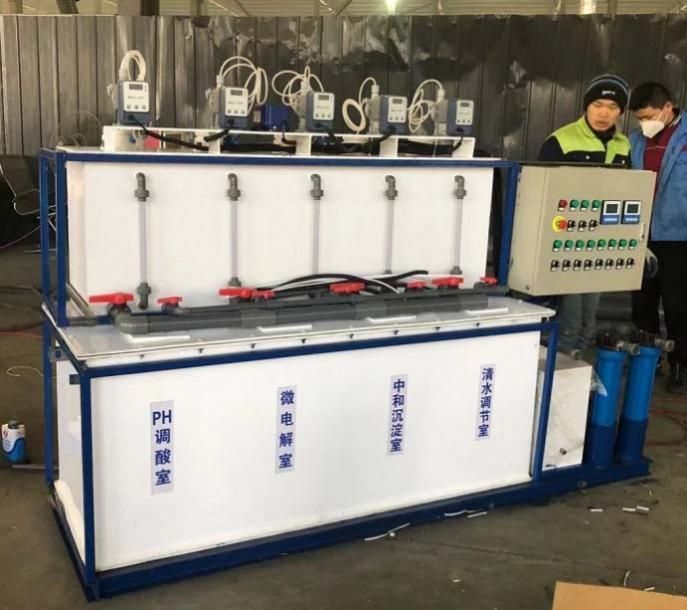

Laboratory Wastewater Treatment Unit
Compact treatment units for laboratory, medical, livestock, slaughterhouse and other biodegradable wastewater from 1 to 10 tonnes per day, with treated effluent meeting the GB 8978-1996 integrated discharge standard.
| Daily capacity | Cabinet dimensions (mm) | Standard configuration |
|---|---|---|
| 0–2 t/d | 1800×850×1500 | PVC housing; level float; dosing pump; self-priming pump; slow-release disinfector; control cabinet; media / inclined tubes; aeration pump and pipes; microfiltration membrane; piping, valves and cables |
| 2–5 t/d | 2000×850×1800 | Same as above, plus multi-media filter |
Need this equipment sized for your project?
Send us your flow rate, influent and target effluent parameters and our engineers will recommend the right configuration.
Contact Our Engineering TeamLaboratory Wastewater Treatment — Compliance and Operation
Laboratory and medical wastewater is variable and contains chemicals, organics and potential pathogens. These compact units treat 1 to 10 t/d and are designed to meet the GB 8978-1996 integrated discharge standard.
What pollutants are removed?
The units remove COD, BOD, suspended solids, color, viruses, organic solvents and heavy-metal ions from laboratory-type wastewater.
What configurations are available?
Units cover 0–2 t/d and 2–5 t/d, with PVC housing, level control, dosing and self-priming pumps, slow-release disinfection, aeration and microfiltration. The larger unit adds a multi-media filter.
What standard does the treated water meet?
The treated effluent is designed to meet the GB 8978-1996 comprehensive wastewater discharge standard. Confirm your local target standard when enquiring.
