Lamella-type inclined tubes increase effective settling area, raise hydraulic surface loading and reduce footprint, with stable hydraulic conditions for sludge sliding and strong adaptability to varying water quality and flow.
| Capacity (m³/h) | Net dimensions (mm) | Dimensions with ladder (mm) | Plate thickness (mm) |
|---|---|---|---|
| 0.5 | 2000×1000×1500 | 2000×1500×1500 | 4 |
| 1 | 3000×1000×2000 | 3000×1500×2000 | 4 |
| 2 | 3500×1500×2000 | 3500×2000×2000 | 4 |
| 3 | 4000×1500×2000 | 4000×2000×2000 | 4 |
| 4 | 4000×2000×2000 | 4000×2500×2000 | 4 |
| 5 | 4000×2000×2500 | 4000×2500×2500 | 4 |
| 6 | 5000×2000×2500 | 5000×2500×2500 | 5 |
| 8 | 6000×2000×2500 | 6000×2500×2500 | 5 |
| 10 | 8000×2000×2500 | 8000×2500×2500 | 6 |
| 12 | 9000×2000×2500 | 9000×2500×2500 | 6 |
| 15 | 11000×2000×2500 | 11000×2500×2500 | 6 |
| 20 | 11000×2500×2500 | 11000×3000×2500 | 6 |
| 25 | 11000×2500×3000 | 11000×3000×3000 | 6 |
| 30 | 11500×3000×3000 | 11500×3500×3000 | 6 |
| 40 | 15000×3000×3000 | 15000×3500×3000 | 8 |
| 50 | 17000×3000×3000 | 17000×3500×3000 | 8 |
Mixers and dosing systems are configured separately per project.
Need this equipment sized for your project?
Send us your flow rate, influent and target effluent parameters and our engineers will recommend the right configuration.
Contact Our Engineering TeamInclined-Tube Sedimentation Tanks

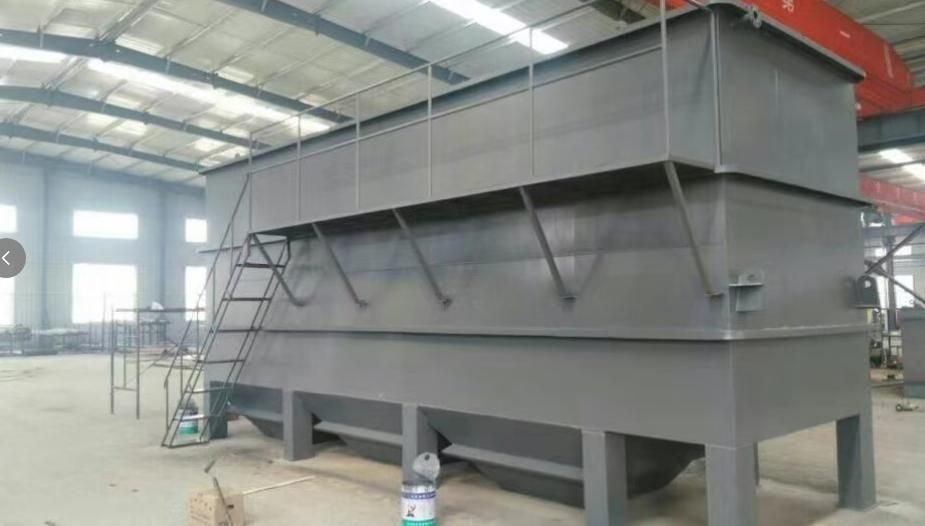

Inclined-tube (lamella) clarifiers deliver high-rate settling in a compact footprint. Inclined plates increase the effective settling area, raise hydraulic surface loading and reduce land requirement.
How does an inclined-tube clarifier work?
Water flows upward through inclined tubes, and particles settle onto the tube surfaces and slide down into the sludge hopper. The large effective settling area allows high hydraulic loading with stable sludge removal.
Where is it commonly used?
It is used for municipal water and wastewater, industrial pre-treatment, and anywhere space is limited but reliable settling is required.
What capacities are available?
Standard units cover 0.5 to 50 m³/h, with net tank dimensions from 2000×1000×1500 mm up to 17000×3000×3000 mm.
Inclined-Tube Sedimentation Tank Selection Notes
Application: The inclined-tube sedimentation tank is used for compact clarification, solids settling and pretreatment before filtration, biological treatment or membrane polishing.
Key sizing data: Confirm flow rate, suspended solids concentration, particle settling behavior, coagulant/flocculant use, sludge discharge method, footprint and target turbidity.
System context: This product can be used as one part of a complete industrial wastewater treatment equipment and waste water treatment systems package. For comparison, see Dissolved Air Flotation (DAF) Unit.
Request a quotation: Send wastewater source, daily flow, peak flow, COD, BOD, SS, oil and grease, ammonia nitrogen, pH, discharge standard and site country so our engineers can recommend a suitable configuration.
