Corrosion-resistant fibreglass integrated treatment plants — lightweight construction with the same complete process train, ideal for moderate loads and aggressive site conditions.
| Capacity (m³/d) | Dimensions L×Φ×wall (mm) | MBR membrane option |
|---|---|---|
| 5 | 3200×Φ1200×8 | 12 m² |
| 10 | 3500×Φ1800×8 | 30 m² |
| 20 | 4000×Φ2200×10 | 60 m² |
| 40 | 5000×Φ2600×10 | 130 m² |
| 60 | 7500×Φ2600×10 | 200 m² |
| 80 | 8000×Φ2800×12 | 260 m² |
| 100 | 10000×Φ2800×12 | 330 m² |
| 150 | 13000×Φ3000×15 | 500 m² |
| 200 | 15000×Φ3000×15 | 660 m² |
| 300 | 13000×Φ3000×15 (2 units) | 1000 m² |
| 400 | 15000×Φ3000×15 (2 units) | 1300 m² |
FRP packages include lift pump, blower, reflux pump, control cabinet, water distribution and aeration systems, inspection openings, media and media supports; MBR packages add self-priming and backwash pumps.
Need this equipment sized for your project?
Send us your flow rate, influent and target effluent parameters and our engineers will recommend the right configuration.
Contact Our Engineering TeamFRP Integrated Wastewater Treatment — Corrosion Resistant

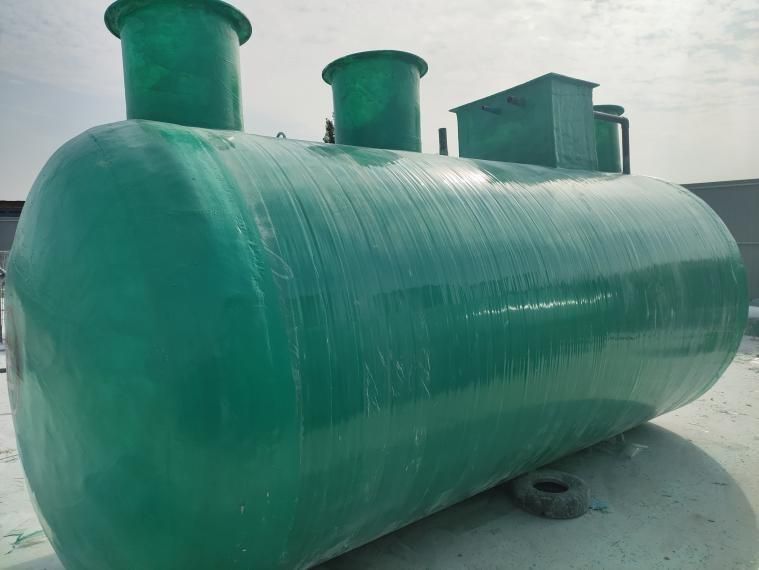

FRP (fibreglass) integrated plants combine the complete treatment process in a lightweight, corrosion-resistant tank. They are a strong choice where water chemistry, humidity or site logistics favour non-metallic construction.
Why choose FRP over carbon steel?
FRP resists corrosion in aggressive water chemistries and humid environments, and the lighter weight simplifies transport and installation. It is ideal for smaller and medium capacities up to 400 m³/d.
What capacities are available?
FRP integrated plants cover 5 to 400 m³/d, with cylindrical tank designs from Φ1200 mm to Φ3000 mm and wall thickness from 8 mm to 15 mm.
What is included in the package?
Each package includes lift pump, blower, reflux pump, control cabinet, water distribution and aeration systems, inspection openings, media and media supports. MBR packages add self-priming and backwash pumps.
FRP Integrated Wastewater Treatment System Selection Notes
Application: This FRP integrated wastewater treatment system is useful where corrosion resistance, lightweight tanks and small-to-medium flow package treatment are important.
Key sizing data: Confirm wastewater type, flow rate, COD/BOD, ammonia nitrogen, pH, burial or above-ground installation, tank volume, site footprint and discharge standard.
System context: This product can be used as one part of a complete industrial wastewater treatment equipment and waste water treatment systems package. For comparison, see Flat Carbon Steel Integrated Wastewater Treatment System.
Request a quotation: Send wastewater source, daily flow, peak flow, COD, BOD, SS, oil and grease, ammonia nitrogen, pH, discharge standard and site country so our engineers can recommend a suitable configuration.
