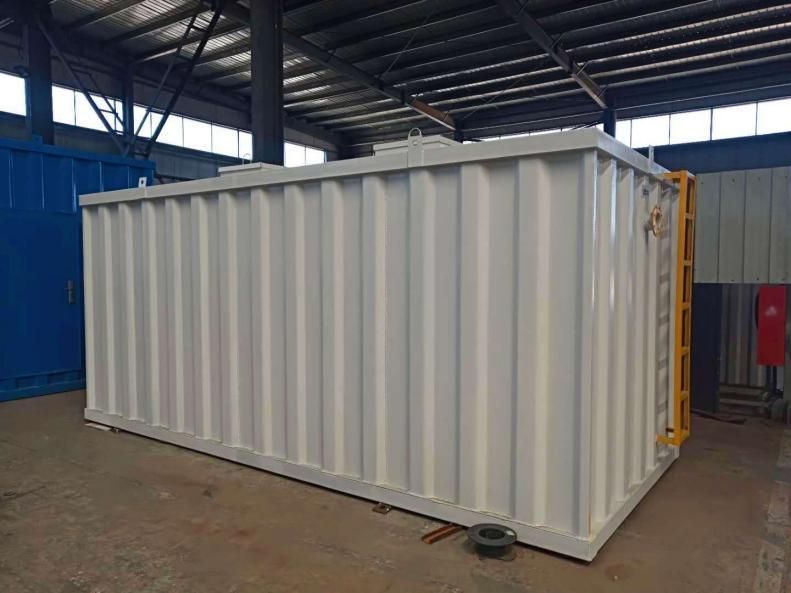

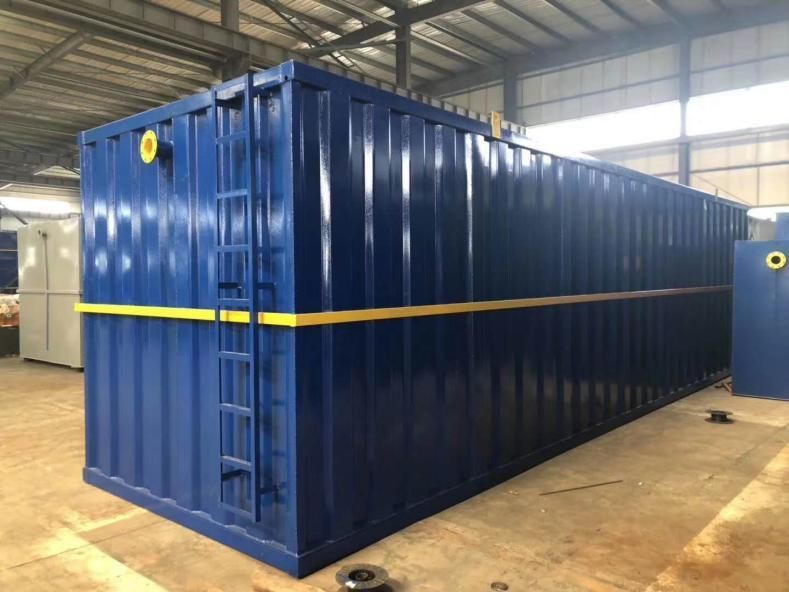

Containerised Integrated Wastewater Treatment System
The same integrated process scope as the flat steel plant, built in container format for easier transport, modular expansion and fast site deployment.
| Capacity (m³/d) | Dimensions L×W×H (mm) | Plate thickness (mm) | MBR membrane option |
|---|---|---|---|
| 5 | 2000×1500×1500 | 4 | 12 m² |
| 10 | 3000×1500×2000 | 4 | 30 m² |
| 20 | 4000×1500×2000 | 4 | 60 m² |
| 30 | 4000×2000×2000 | 4 | 100 m² |
| 40 | 5000×2000×2000 | 4 | 130 m² |
| 60 | 6500×1800×2500 | 5 | 200 m² |
| 80 | 8000×2000×2500 | 6 | 260 m² |
| 100 | 9500×2500×2500 | 6 | 330 m² |
| 120 | 11000×2500×2500 | 6 | 400 m² |
| 150 | 13000×2500×2500 | 6 | 500 m² |
| 200 | 13000×3000×3000 | 6 | 660 m² |
| 300 | 13000×2500×2500 (2 units) | 6 | 1000 m² |
| 400 | 13000×3000×3000 (2 units) | 6 | 1300 m² |
Standard configuration includes lift pump, reflux pump, blower, control cabinet, piping and valves, water distribution system, media and media supports; MBR packages add self-priming and backwash pumps.
Need this equipment sized for your project?
Send us your flow rate, influent and target effluent parameters and our engineers will recommend the right configuration.
Contact Our Engineering TeamContainerised Wastewater Treatment — Fast Deployment
Containerised integrated plants deliver the same complete process train as flat steel systems but in container format, making them easier to transport, quicker to install and simpler to expand. Ideal for temporary sites, remote projects and phased capacity.
How fast can a containerised plant be commissioned?
Because the process train is factory-built and delivered as one unit, installation is plug-and-play. Site work is limited to positioning, connection of inlet/outlet and power.
Can capacity be expanded later?
Yes. Containerised units are modular, so additional containers can be added as flows grow.
Is the process the same as the flat steel integrated system?
Yes. The biological, sedimentation and disinfection stages are equivalent, with the same configuration scope including pumps, blower, control cabinet and media.
